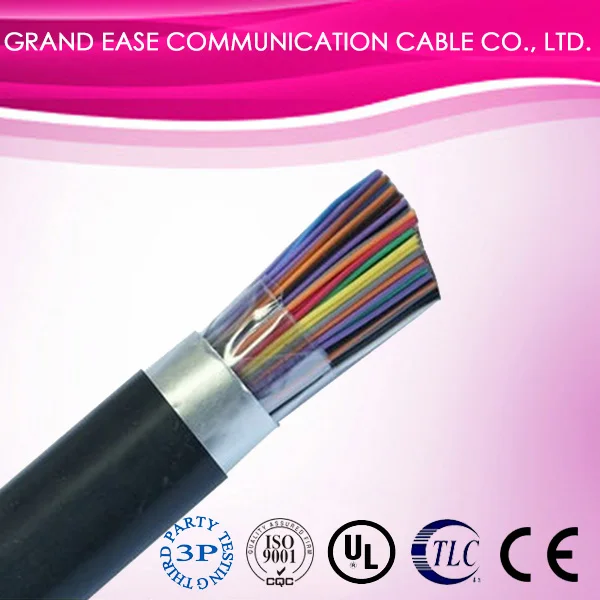

2400 pairs single jacket telephone cable HYA

FOB Reference Price:Get Latest Price
$0.01 - $0.10 / Meters | 5000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
GRAND EASE
Model Number:
HYA telephone cable
Number of Conductors:
≥ 10
Product name:
telephone cable
Certification:
ISO9001
Type:
telecommunication cable
Conductor:
bare copper
Conductor diameter:
0.4mm
conductor Number:
2-2400
Insulation:
PE
Armored material:
Aluminum tape
Rip cord:
Yes
Supply Ability
Supply Ability:
4066666 Meter/Meters per Month underground
Packaging & Delivery
Packaging Details
Packed in wooden drums or Iron-wooden drums, sealed with packaging film, then sealed with wood bars as outer package; or as required.
Port
Shunde or Shenzhen or Guangzhou
  2400 pairs single jacket telephone cable HYA
Product Description
What is the application of the cable ?

 Cable is mainly used to transmit audio,150k Hz and below ,the analog signals and 2048k bit/s and below, the digital signal.Under certain conditions, can also be used to transmit 2048 kbit /s or more digital singals.



-Installation: Duct or aerial(non-self-supporting aerial)

What is the characteristic of the cable ?



1.Annealed pure copper wire insulated with HDPE, each two different color insulated wires twisted

   together to a pair.



2.Cable core wrapped with polyester tape to act as heat resistant barrier.



3.Aluminum tape wrapped and then with sheath

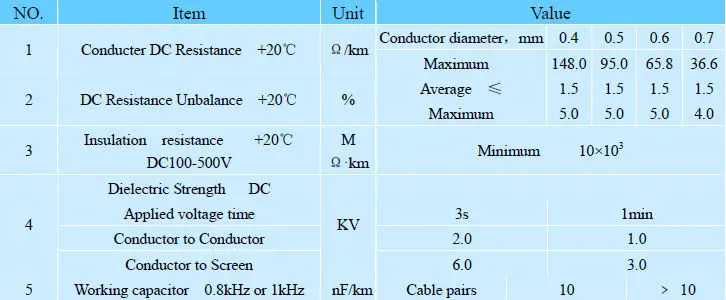

What is the electrical characteristics of the cable ?

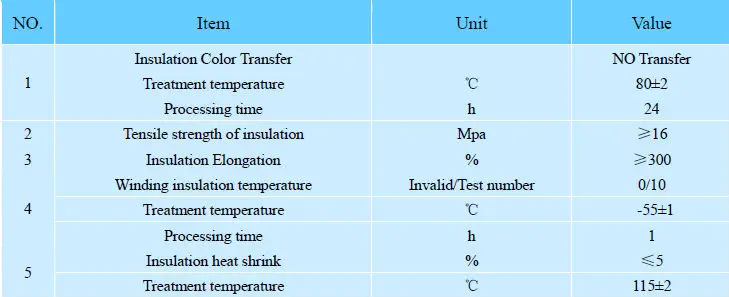

What is the physical characteristics of the cable ?
